Art.Nr.  105052003
BESV TRX 1.5 STEP OVER dark red gloss 22 490 L
  • Einsatzgebiet: MTB
  • Motorisierung: Shimano EP-800 center-motor, 250W rated power, 85Nm of torque
  • Akku: Darfon 504Wh, integr. battery for Shimano Service, Smart 2A charger
  • Bedieneinheit: Shimano SC-E5003 side mounted LCD display
  • Schaltung: Shimano Deore, 10 speed
  • Beleuchtung: ohne

sofort im Laden verfügbar
Verfügbar in unserer Filiale in Excellent Bikes KG
sofort im Laden verfügbar
Verfügbar in unserer Filiale in Excellent Bikes KG
statt 3.499,00 EUR (UVP) pro 1 (inkl. MwSt. zzgl. Versandkosten für Grossartikel)

2.449,30 EUR

Menge:



Produktdetails

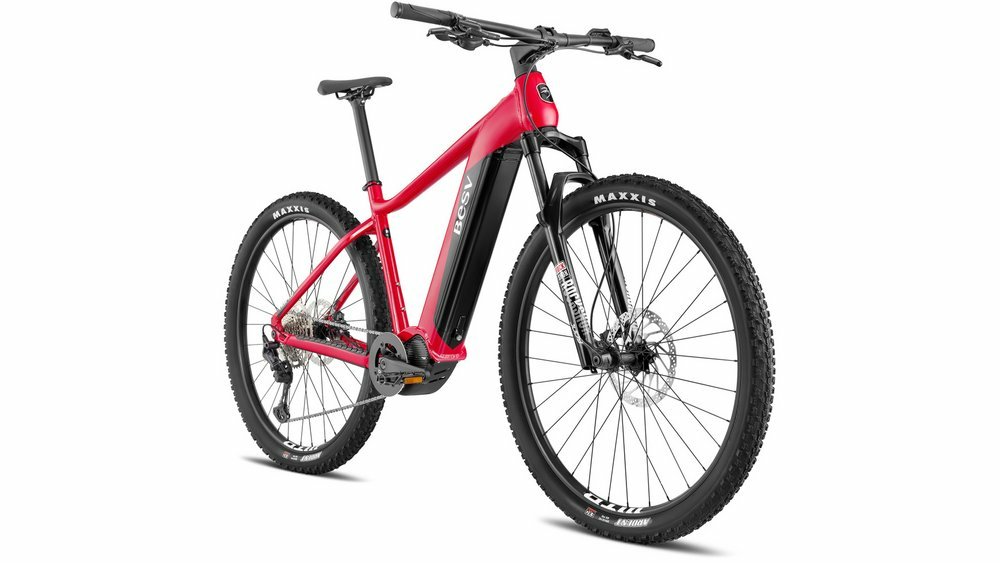

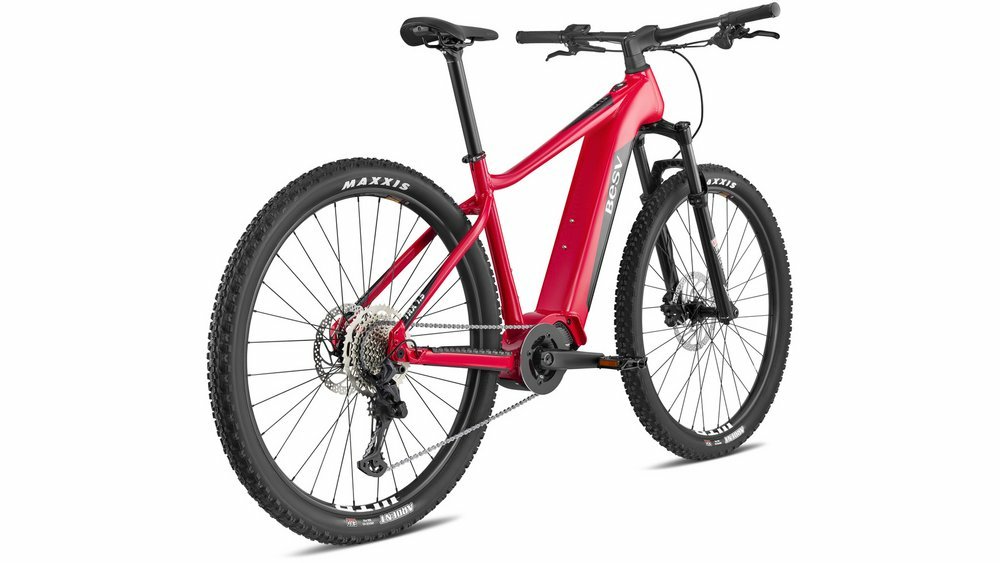

TRX 1.5 Step Over

Sizes: S (42.5cm) / M (46cm) / L (49cm)Color: Dark red glos, Lady: Mint blue gloss

SPECIFICATION:
  • Frame: Hard-tail BESV premium alloy frame with down tube for integrated Darfon battery, with USB charging port and sattelite swich on top tube,Shimano center-motor with protection cover, tapered 1.5" head tube, post disc mount, cold-forged dropout with replaceable hanger
  • Drive Unit: Shimano EP-800 center-motor, 250W rated power, 85Nm of torque, 25km/h maximum assist
  • Battery: Darfon 504Wh, intergrated battery, approved for ‘Shimano Service Program’, with Smart 2A charger
  • Display: Shimano SC-E5003 side mounted LCD display
  • Fork: RockShox Recon Silver, 32mm stanchions, TurnKey Coil, 1.1/8"-1.5" tapered alloy steerer, travel 120mm, Maxle Stealth
  • Crankset: Samox for Shimano Steps, 34T chainring
  • Bottom Bracket: Shimano, integrated in motor
  • Pedals: Wellgo, alloy body, ball bearings
  • Rear Derailleur: Shimano Deore, 10 speed
  • Shifters: Shimano Deore, 10 speed
  • Cassette: 10 speed, 11-46T
  • Chain: KMC e10Turbo, with Quick-Link
  • Wheelset: Disc brake front and rear hub, Boost hubs spacing, for Center Lock disc brakes, streight stainless steel spokes, WTB STi27 29" multichamberalloy rims for disc brakes with 32H
  • Tires: Maxxis Ardent, 29"x2.4", Normal Compound, EXO, 60 TPI wire
  • Brakeset: Hydraulic disc brake set, with 180mm front and rear rotors
  • Brake Levers: Hydraulic disc brake set, 2-finger lever
  • Headset: Acros, AZX-581, 1.5" headset, angular contact bearings, integrated cable routing
  • Handlebar: E-MTB riser bar, 6066 alloy, 15mm rise, sweep: 7 degree back, 31.8mm clamp, width in man version: S: 720mm, M: 740mm, L: 760mm /width in lady version: XS/S: 700mm, M/L: 720mm
  • Stem: E-MTB 3D Forged alloy stem, 31.8mm clamp, for internal cable routing, length in man version: S: 60mm, M/L: 80mm / length in lady version:XS/S: 45mm, M/L: 60mm
  • Grips: E-MTB gel grips with padding and BESV clamp
  • Saddle: Selle Italia Model-X Superflow eBike
  • Seatpost: Alloy 6066 micro-adjust, 31.6mm diameter, 3.7mm offset
