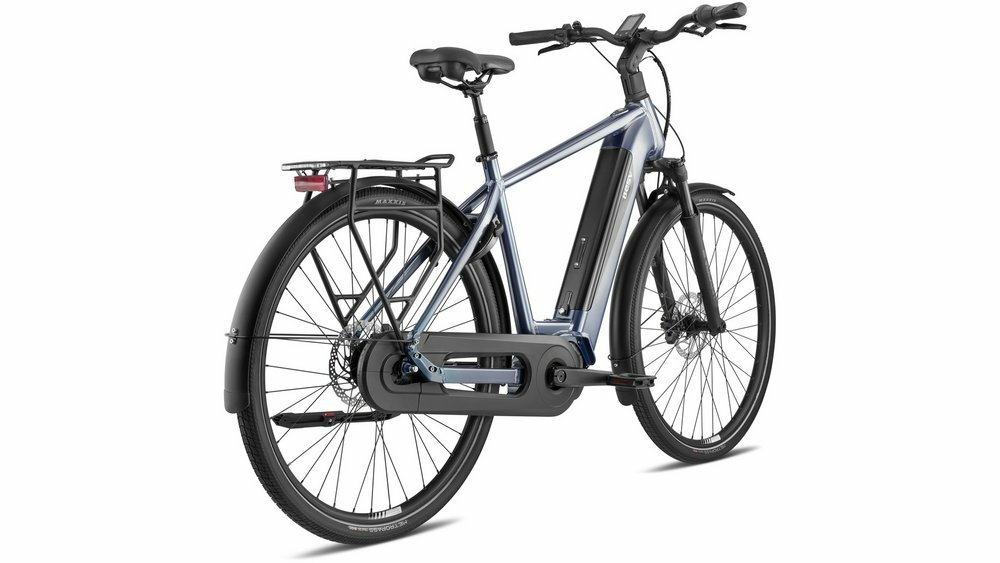

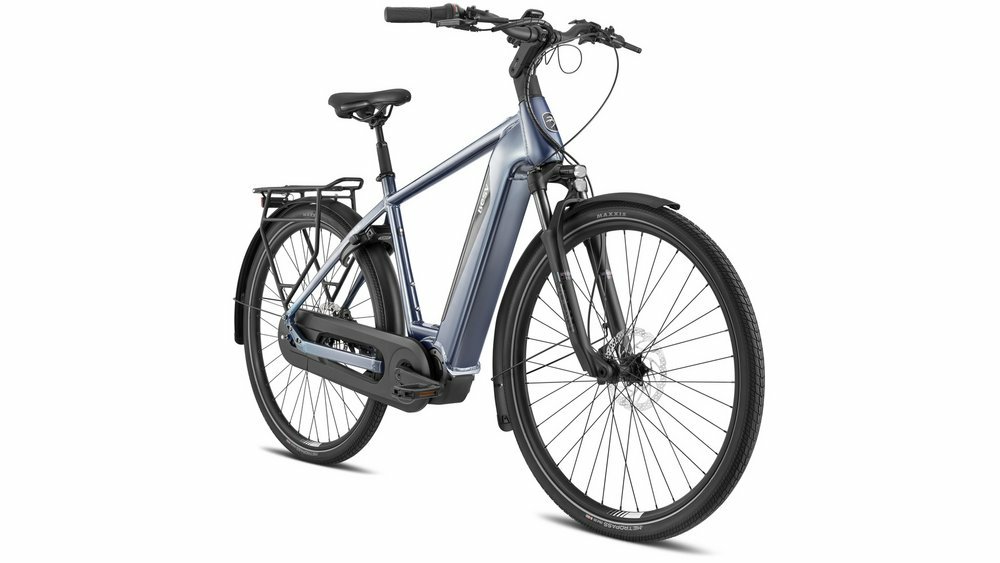

BESV CT 1.3 Step Over

Sizes: M (52cm) / L (56cm) / XL (60cm)Color: Nickel gray gloss

SPECIFICATION:

• Frame: BESV premium alloy frame with down tube for integrated Darfon battery, with USB charging port and sattelite swich, Shimano center-motorwith protection cover, 1.5" head tube, post disc mount, cold-forged dropout with modular hangers
• Drive Unit: Shimano E-6100 center-motor, 250W rated power, 60Nm of torque, 25km/h maximum assist
• Battery: Darfon 630Wh, intergrated battery, approved for ‘Shimano Service Program’, with Smart 5.6-4A charger
• Display: Shimano SC-E6100 center mounted LCD display with Bluetooth and ANT private connectivity
• Fork: RST Volant-15, Remote lockout, Coil damping, tapered alloy steerer, travel 80mm, Thru-axle
• Crankset: Samox for Shimano Steps, 38T chainring
• Bottom Bracket: Shimano, integrated in motor
• Pedals: Wellgo pedals with reflectors
• Rear Derailleur: Shimano Nexus 5 speed
• Shifters: Shimano Nexus 5 speed
• Cassette: Shimano Inner Gear sprocket, 27T
• Chain: KMC E101 EPT
• Wheelset: Disc brake front hub, Shimano Nexus 5 speed rear hub, for Center Lock disc brakes, CN streight stainless steel spokes, SR J23ZK 700cmultichamber alloy rims for disc brakes with 36H
• Tires: Maxxis Metropass, 700x50c, Silkworm, 60 TPI wire bread with puncture protection, with reflective stripe
• Brakeset: Hydraulic disc brake set, with 180mm front and 160mm rear rotors
• Brake Levers: Hydraulic disc brake set, 3 finger lever
• Headset: Acros, AZX-585, 1.5" headset, angular contact bearings, integrated cable routing
• Handlebar: Alloy City-Trekking riser bar, 6066 alloy, 40mm rise, sweep: 30 degree up, 31.8mm clamp, width in man version: S/M: 700mm, L/XL: 720mm /width in lady version: XS/S: 680mm, M/L: 700mm
• Stem: 3D Forged alloy City-Trekking stem, SP-Connect mount, adjustable 0-90 degree, 31.8mm clamp, integrated cable routing, width in man version:S/M: 90mm, L/XL: 110mm / width in lady version: XS/S: 65mm, M/L: 90mm
• Grips: Comfortable gel grips with padding
• Saddle: Selle Italia S5 Superflow
• Seatpost: Suspension seatpost with anti-sideplay, 40mm travel, 31.6mm diameter, 12mm offset
• Fenders: Alloy extruded fenders, front & rear 3/4 length, stainless steel hardware
• Headlight: Lezyne eBike Power E115, 6-12v, 115 lux, with reflector
• Taillight: Herrmans H-Cargo, 6-12v, with reflector
• Rear Carrier: Tubular aluminium carrier, with Snap-IT platform and spring clamp, H-Cargo rear light
• Accessories: Adjustable kickstand, Chainguard



Akkukapazität / Batterieleistung
630 Wh / Wattstunde

Einsatzbereich
City

Federung
Vorne

Motorisierung
Shimano E-6100

Rahmenform / -typ
Diamant

Schaltgruppe
Shimano Nexus 5-fach

Schaltungstyp
Nabenschaltung

Zulässiges Gesamtgewicht
140 kg

Geschlecht
Herren

Marke
Besv

FEDAS Warengruppe
160074

Produktkategorie
Räder

Lieferumfang
1x E-Bike, 1x Akkuladegerät, 1x Ladekabel, 1 Paar Pedale, 1x Batterie, 1x Garantiebestimmungen, 1x Kurzanleitung, 1x Schnellspanner vorne, 1x Speichenreflektoren vorne & hinten, 1x Klingel

Farbe
nickel gray gloss 22

Größe
520 M

Artikelbezeichnung
BESV CT 1.3 SO nickel gray gloss 520 M

Saison Jahr
2022

EAN
4715109793468

EAN/UPC Typ
HE

Lieferantenartikelnummer
99.Y2S64.8M3
